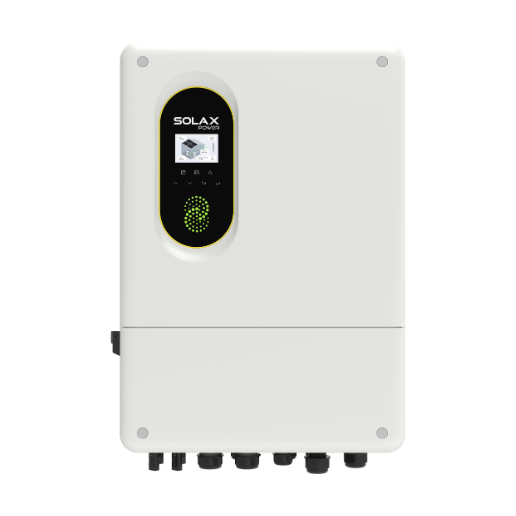

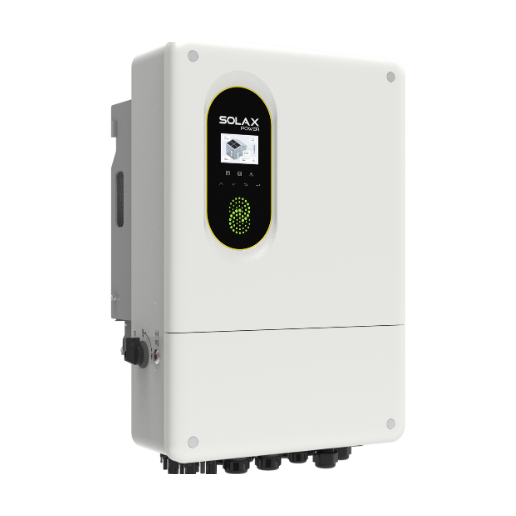

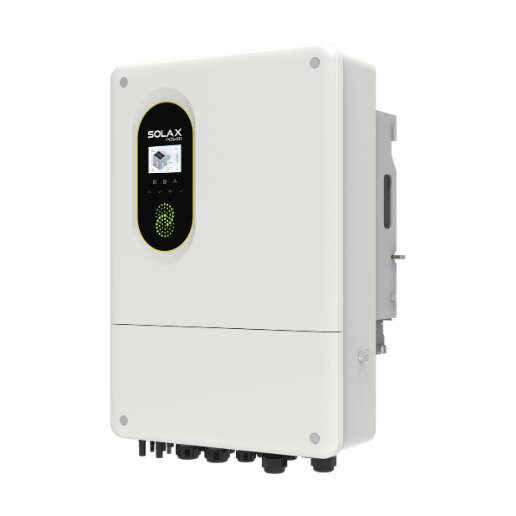

Hybrid Inverter

X3-NEO-LV

  • 5.0kW / 8.0kW / 10.0kW / 12.0kW / 15.0kW

The X3-NEO-LV suppors parallel on-grid and off-grid operation—up to 3 units. Its microgrid and generator compatibility ensures seamless integration across various energy environments, while the 36A DC input per MPPT maximizes compatibility with high-power solar panels.

Product Advantage

It delivers up to 200% PV oversizing and 110% AC output, ensuring high efficiency and flexibility. The X3-NEO-LV offers IP65 protection, built-in SPD, and optional AFCI for safety. Economically, it supports high-power solar panels with low startup voltage for extended operation.

Contact Us

Flexible Adaptability

  • Max. 3pcs parallel for on-grid and off-grid* (Feature to be upgraded in the future)

  • Microgrid and generator function for versatile operations

  • Max. 36A DC input per MPPT, optimized for high-power solar panel

Smart Management

  • Single unit UPS-level switchover time <3 ms

  • Dedicated load interface for intelligent load management

  • Global MPP scan for optimal energy harvest* (Feature to be upgraded in the future)

High Performance

  • 200% PV oversizing and up to 110% AC output

  • 200% peak EPS power for 10 s

  • Max. 300A charging / discharging current

  • Low start-up voltage for longer operation


Assured Reliability

  • Battery terminal temperature detection

  • IP65 protection degree

  • Type II SPD on AC&DC side

  • Optional AFCI protection* (Feature to be upgraded in the future)

Product Parameters

  • X3-NEO-5K-LV
  • X3-NEO-8K-LV
  • X3-NEO-10K-LV
  • X3-NEO-12K-LV
  • X3-NEO-15K-LV
  • X3-NEO-5K-LV
    • PV INPUT
      Max. recommended PV array power10 kWp
      MPPT voltage range160 ~ 950 V
      No. of MPP. trackers / strings per MPPT2 / (1 / 1)
      Max. input current per MPPT18 A / 18 A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power5 kW
      Nominal AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<3 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)520 × 705 × 258 mm
      Net Weight44.6 kg


  • X3-NEO-8K-LV
    • PV INPUT
      Max. recommended PV array power16 kWp
      MPPT voltage range160 ~ 950 V
      No. of MPP. trackers / strings per MPPT2 / (1 / 1)
      Max. input current per MPPT18 A / 18 A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power8 kW
      Nominal AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<3 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)520 × 705 × 258 mm
      Net Weight44.6 kg


  • X3-NEO-10K-LV
    • PV INPUT
      Max. recommended PV array power20 kWp
      MPPT voltage range160 ~ 950 V
      No. of MPP. trackers / strings per MPPT2 / (2 / 1)
      Max. input current per MPPT36 A / 18 A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power10 kW
      Nominal AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<3 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)520 × 705 × 258 mm
      Net Weight44.6 kg


  • X3-NEO-12K-LV
    • PV INPUT
      Max. recommended PV array power24 kWp
      MPPT voltage range160 ~ 950 V
      No. of MPP. trackers / strings per MPPT2 / (2 / 2)
      Max. input current per MPPT36 A / 36 A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power12 kW
      Nominal AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<3 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)520 × 705 × 258 mm
      Net Weight44.6 kg


  • X3-NEO-15K-LV
    • PV INPUT
      Max. recommended PV array power30 kWp
      MPPT voltage range160 ~ 950 V
      No. of MPP. trackers / strings per MPPT2 / (2 / 2)
      Max. input current per MPPT36 A / 36 A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power15 kW
      Nominal AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<3 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)520 × 705 × 258 mm
      Net Weight44.6 kg
