Battery Accessories

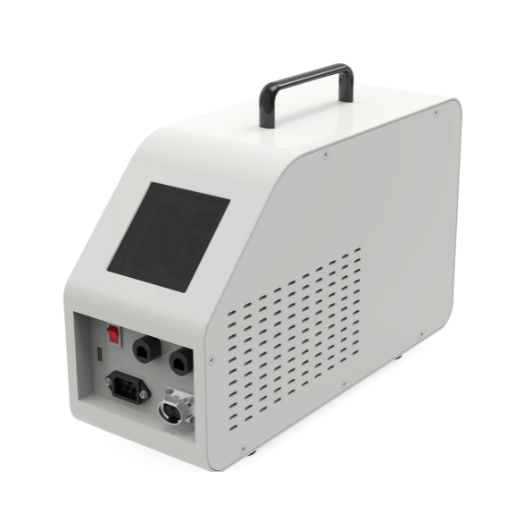

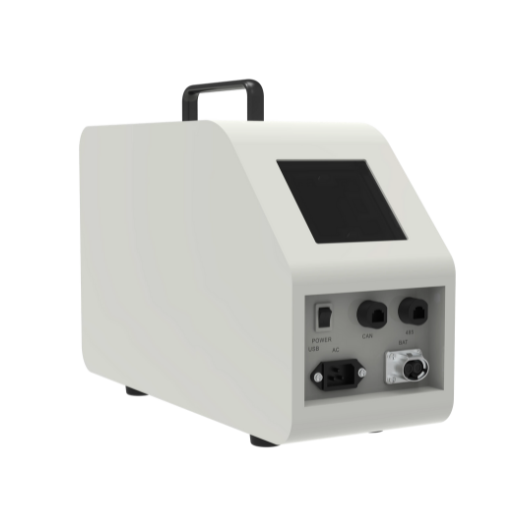

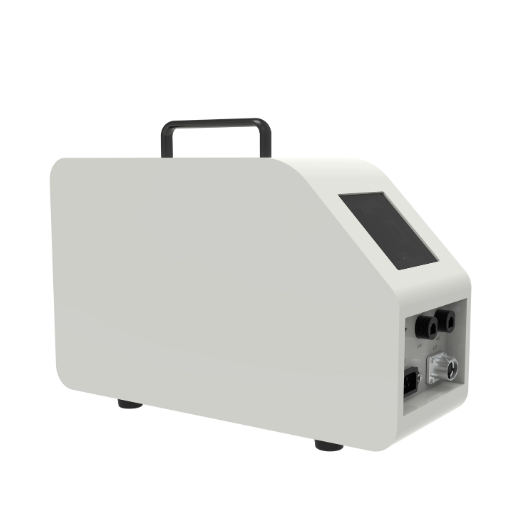

T-BAT-CHARGER
-
BAT System Solution
Its direct charging bypasses inverters for faster power-up, while built-in overcharge protection extends battery life. With synchronized SOC display and the ability to charge two batteries simultaneously, this charger maximizes uptime and safety—ideal for sustainable, high-performance energy systems.
-
Watch Video
Product Advantage
Powered by precision charge control and efficient series charging, the T-BAT-CHARGER ensures accurate state-of-charge (SOC) management with just 1% variance. Designed to support global voltage standards (180-264V), it’s the perfect fit for users around the world who demand smart energy solutions.
Instant Power-Up
Direct charging, by passing inverters – efficient and straightforward
Global Voltage Range
Designed for 180-264V compatibility – suitable for worldwide use.
Precise Charge Control
Offers 1% precision in charge control, enabling uniform SOC across multiple batteries.
Local Visual Display
Streamlined setup and easy configuration - synchronize SOC across batteries effortlessly
Efficient Series Charging
Supports two batteries charging in series – halving waiting times.
Safety First
Embedded with overcharge protection – promotes safe, sustainable battery usage.
Product Parameters
-
T-BAT-CHARGER-
ELECTRICAL CHARACTERISTICS
Max. AC Input Apparent Power [VA] 2200 Max. AC Input Current [A] 10 Nominal AC Voltage (AC Voltage Range) [V] 220 (180~264) Nominal Grid Frequency Range [Hz] 47-63 Efficiency [%] 90 -
OPERATING CONDITIONS
Enclosure Protection IP20 Cooling Type Smart Cooling -
ADAPTABILITY
Compatible Batteries T-BAT-SYS-HV-5.0, T-BAT-SYS-HV-R25/36, T-BAT-SYS-HV-3.0 V1/V2, T-BAT-5.8 V1/V2, T-BAT-SYS-HV-4.5/6.3, T-BAT-SYS-HV-S25/36 -
SPECIFICATION
Dimensions(W × H × D) 150 × 256 × 402 mm Weight 7.1 kg
-
Data Download
-
Datasheet
-
Quick Installation Guide
-
File nameLanguageFormatSizeLast updateddownload
