ESS Accessories

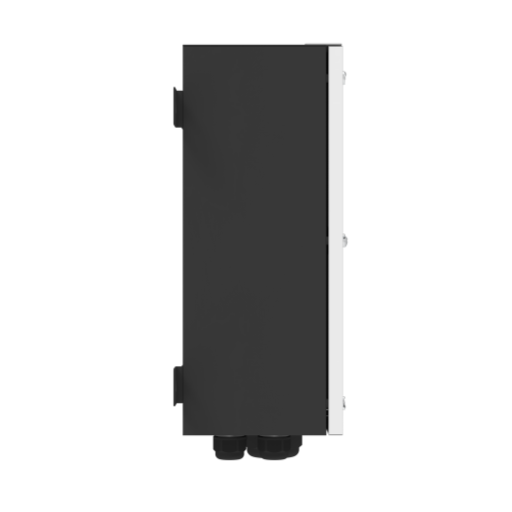

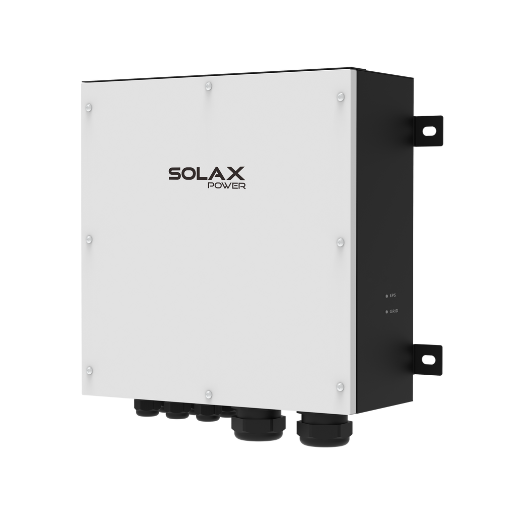

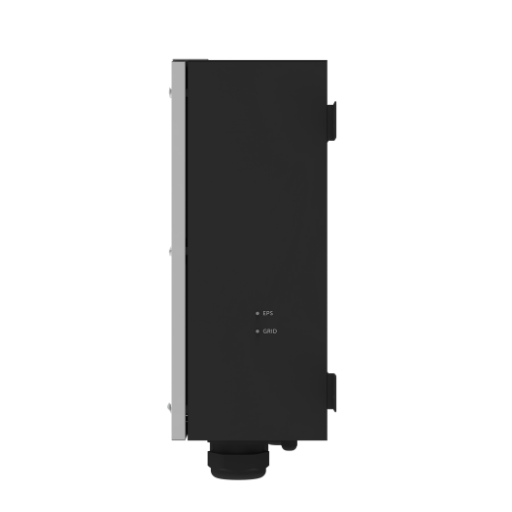

X3-EPS Parallel Box G2
-
60kW / 150kW / 300kW
By supporting parallel backup power, the EPS Parallel Box ensures stable and uninterrupted energy supply even in high-demand scenarios. Ideal for systems requiring scalable performance, it delivers reliable power with long-term efficiency.
Product Advantage
Designed for flexibility, it enables parallel connection of up to 10 inverters depending on power ratings, with simplified wiring for fast installation and system expansion. (The X3-EPS Parallel Box is available in G2 and G2.1 versions. G2 supports only X3-G4 inverters, while G2.1 offers full compatibility with both X3-G4 and X3-ULTRA. )
Reliable Performance
Provide reliable backup power in parallel
Flexible Integration
Convenient wiring
Product Parameters
-
X3-PBOX-60kW-G2-
GENERAL SPECIFICATION
Operating temperature range -25 ~ 40°C (-13 ~ 104°F ) Relative humidity range 0.5 kg Altitude <3000m Dimensions (W × H × D) 492 × 478 × 183 mm Weight 17 kg Degree of protection IP65
-
-
X3-PBOX-150kW-G2
-
GENERAL SPECIFICATION
Operating temperature range -25 ~ 40°C (-13 ~ 104°F ) Relative humidity range 0.5 kg Altitude <3000m Dimensions (W × H × D) 776 × 740 × 234 mm Weight 42.5 kg Degree of protection IP65
-
-
X3-PBOX-300kW-G2
-
GENERAL SPECIFICATION
Operating temperature range -25 ~ 40°C (-13 ~ 104°F ) Relative humidity range 0.5 kg Altitude <3000m Dimensions (W × H × D) 880 × 1080 × 270 mm Weight 100 kg Degree of protection IP65
-
Data Download
-
Datasheet
-
Quick Installation Guide
-
Declaration
English
-
File nameLanguageFormatSizeLast updateddownload
