Battery Accessories

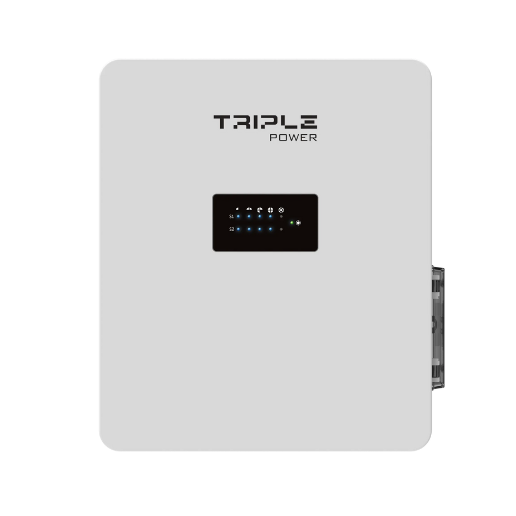

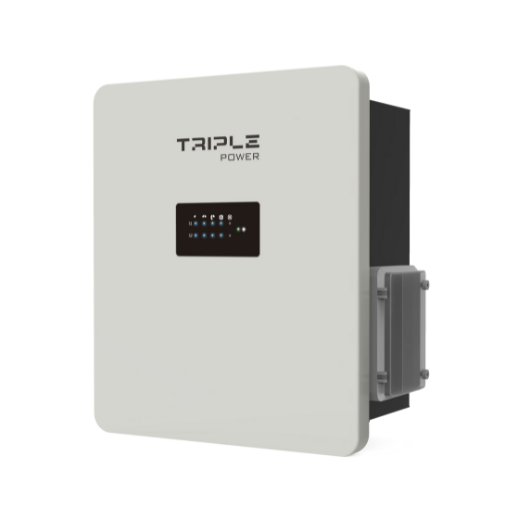

BMS-Parallel Box-II G2

  • Compatible with T-BAT-SYS-HV-3.0, T-BAT-SYS-HV-5.8

Compatible with T-BAT-SYS-HV-3.0 and T-BAT-SYS-HV-5.8 models, it supports two-column parallel configurations, enabling seamless scalability for ESS applications. This smart layout optimizes inverter capacity usage while minimizing system complexity.

Product Advantage

Engineered to optimize energy output, the BMS Parallel Box-II G2 effortlessly expands battery capacity and prolongs battery lifespan. By supporting parallel connection of two battery strings, it enhances ESS (Energy Storage System) performance with greater operating efficiency and longer runtime.

Contact Us

Reliable Performance

  • Easily expand capacity

  • Extend battery lifespan

Flexible Adaptability

  • Support two-column parallel connection

  • Support T-BAT-SYS-HV-3.0, T-BAT-SYS-HV-5.8

Product Parameters

  • BMS-PARALLEL BOX-II G2
  • BMS-PARALLEL BOX-II G2
    • GENERAL
      Dimensions (W x H x D)368 x 334 x 153.5 mm
      Weight8.7 kg
      Expected life5 years
      ProtectionIP65


    • ENVIRONMENT REQUIREMENT
      Input / Output voltage range70 ~ 550 V
      Standard power11.5 kW
      Maximum power16.1 kW


    • CERTIFICATION
      SafetyIEC / EN 62477-1, IEC / EN 61439-1, IEC / EN 61439-2
      EMCEN 61000-6-1 / 2 / 3 /4


Data Download

  • Datasheet
  • User Manual
  • Quick Installation Guide
  • Declaration
