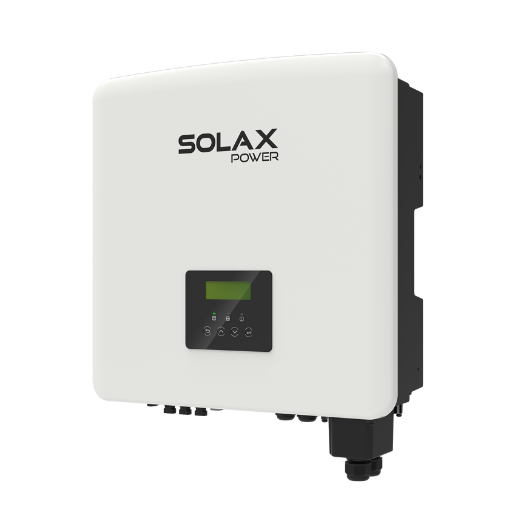

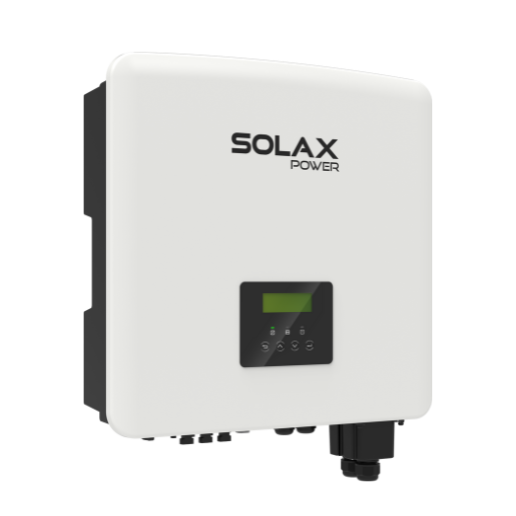

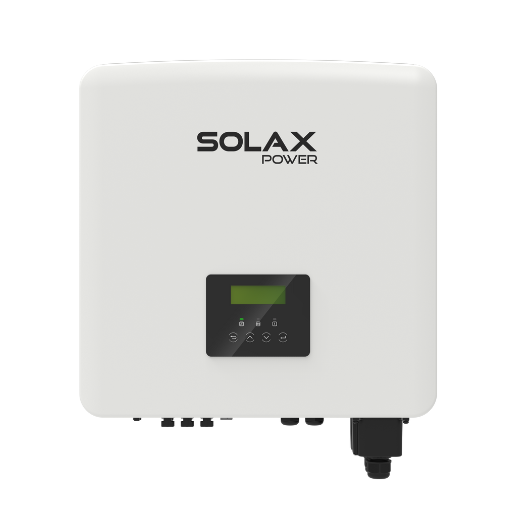

Hybrid Inverter

X3-HYBRID G4

  • 5kW / 6kW / 8kW / 10kW / 12kW / 15kW

SolaX X3-HYBRID G4 delivers seamless on/off-grid switching, 150kW parallel capacity, and intelligent energy management. Perfectly integrates solar, storage, and EV charging—VPP-ready for the energy future.

Product Advantage

Achieve up to 200% PV oversizing and 110% AC output to maximize solar generation efficiency. Designed to handle complex loads, it also supports three-phase unbalanced output of up to 5kW per phase—perfect for dynamic, high-demand environments.

Contact Us

Flexible Adaptability

  • Lithium-ion & Lead-acid battery compatible

  • On-grid and off-grid parallel function, up to 150kW

  • Max. 28A input per MPPT, optimized for high-power solar panels.

  • Quick configuration via U-disk


Smart Management

  • VPP ready, ancillary service in power market

  • Global MPP scan for optimal energy harvest

  • Smart loads management(e.g., heat pump, smart EV charger)

  • Intelligent ToU-driven energy management


High Performance

  • 200% PV oversizing and up to 110% AC output

  • Up to 97.5% efficiency in charging and discharging

  • Up to 200% PV input

  • Three-phase unbalanced output: Max. 5kW per phase

Assured Reliability

  • Up to 200% EPS overload output for 10 seconds*

  • UPS-level switchover time<10ms

  • IP65 protection degree

  • Type II SPD on AC&DC side



Product Parameters

  • X3-HYBRID-5.0-D
  • X3-HYBRID-6.0-D
  • X3-HYBRID-8.0-D
  • X3-HYBRID-10.0-D
  • X3-HYBRID-12.0-D
  • X3-HYBRID-15.0-D
  • X3-HYBRID-5.0-D
    • PV INPUT
      Max. recommended PV array power10 kWp
      MPPT voltage range180~950V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT16 A/16 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power5 kW
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power12.0 kVA, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)503 x503x199 mm
      Net Weight30 ±1 kg


  • X3-HYBRID-6.0-D
    • PV INPUT
      Max. recommended PV array power12 kWp
      MPPT voltage range180~950V
      No. of MPP. trackers / strings per MPPT2(1/1)
      Max. input current per MPPT16 A/16 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power6 kW
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power18.0 kVA, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)503 x503x199 mm
      Net Weight30 ±1 kg


  • X3-HYBRID-8.0-D
    • PV INPUT
      Max. recommended PV array power16 kWp
      MPPT voltage range180~950V
      No. of MPP. trackers / strings per MPPT2(2/1)
      Max. input current per MPPT28 A/16 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power8 kW
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power18.0 kVA, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)503 x503x199 mm
      Net Weight30 ±1 kg


  • X3-HYBRID-10.0-D
    • PV INPUT
      Max. recommended PV array power20 kWp
      MPPT voltage range180~950V
      No. of MPP. trackers / strings per MPPT2(2/1)
      Max. input current per MPPT28 A/16 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power10 kW
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power18.0 kVA, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)503 x503x199 mm
      Net Weight30 ±1 kg


  • X3-HYBRID-12.0-D
    • PV INPUT
      Max. recommended PV array power24 kWp
      MPPT voltage range180~950V
      No. of MPP. trackers / strings per MPPT2(2/1)
      Max. input current per MPPT28 A/16 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power12 kW
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power22.5 kVA, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)503 x503x199 mm
      Net Weight30 ±1 kg


  • X3-HYBRID-15.0-D
    • PV INPUT
      Max. recommended PV array power30 kWp
      MPPT voltage range180~950V
      No. of MPP. trackers / strings per MPPT2(2/1)
      Max. input current per MPPT28 A/16 A



    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power15 kW
      Rated AC voltage

      3/N/PE,220/380V

      3/N/PE,230/400V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power22.5 kVA, 10 s
      Switchover time<10 ms


    • GENERAL
      Ingress protectionIP65
      Dimensions (W /H / D)503 x503x199 mm
      Net Weight30 ±1 kg


Data Download

  • Datasheet
  • User Manual
  • Quick Installation Guide
  • Declaration
