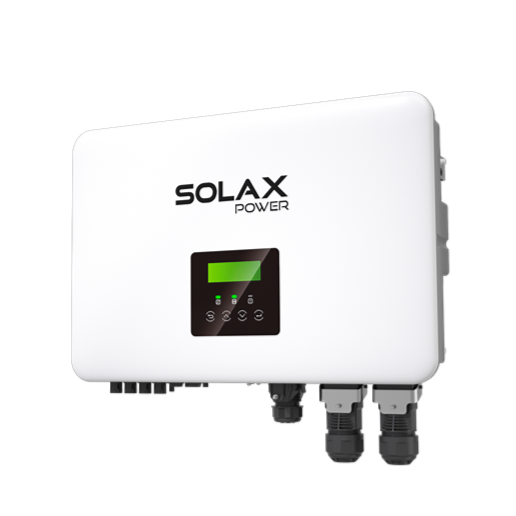

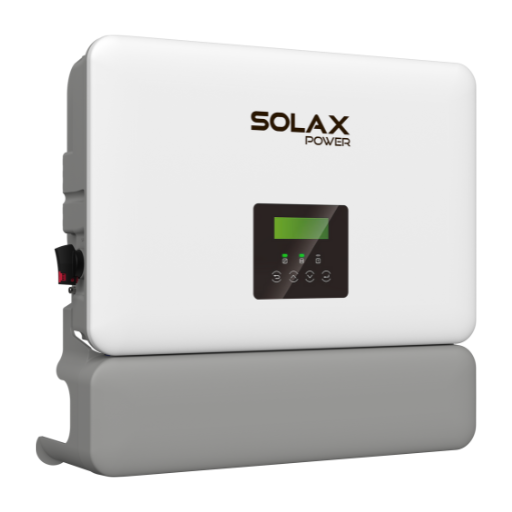

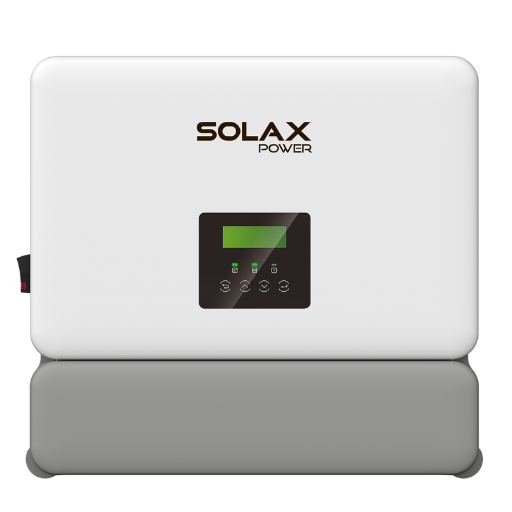

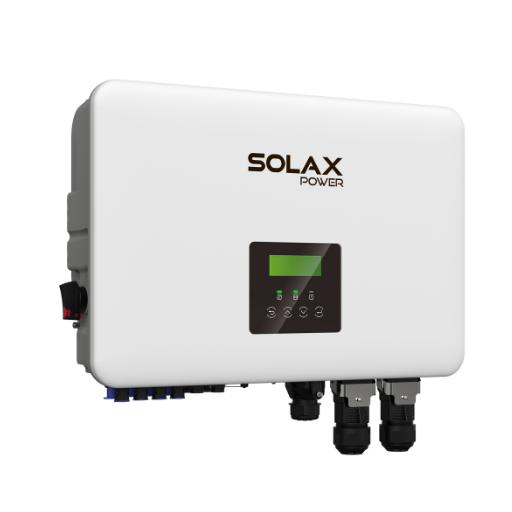

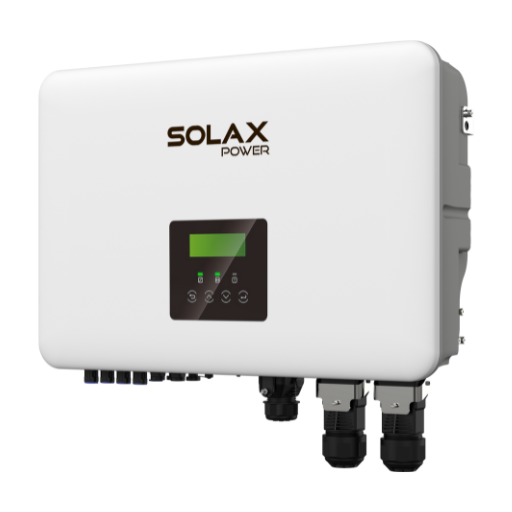

Hybrid Inverter
X1-VAST
-
5kW / 6kW / 8kW / 10kW
The X1-VAST is built for advanced home energy systems, with seamless integration into microgrids and generators for reliable off-grid use. With support for V2G and V2H applications, it enables advanced EV energy integration, making it ideal for future-ready smart homes.
-
Watch Video
Product Advantage
The X1-VAST supports 200% PV oversizing and high-capacity 20A DC input per MPPT across 4 trackers, ensuring optimal solar energy utilization. For backup power, it provides up to 200% EPS output with an ultra-fast <10ms switchover time, ensuring uninterrupted power supply during grid outages.
High Performance
20A DC input per MPPT with 4 trackers
200% PV oversizing and high power capacity
Low PV start-up voltage of 50V
Assured Reliability
Up to 200% EPS output for 10s
UPS-level switchover time<10ms
Type II SPD on AC&DC side
Optional AFCI protection*
Flexible Adaptability
Dual battery ports & 2-in-1 function for expansion
Dedicated multi-device connections for streamlined cabling
Functional and stylish wiring cover
Microgrid and generator compatible for resilient off-grid solutions
Smart Management
V2G/V2H ready for smart home energy integration*
Smart Schedule, Smart Scene, and 7×24h TOU
VPP ready with a variety of compatibility(OpenADR, IEEE2030.5, FCAS, API)*
Wireless meter compatibility
Support whole-home load without extra devices
Product Parameters
-
X1-VAST-5K-
PV INPUT
Max. recommended PV array power 10 kWp MPPT voltage range 40 ~ 560 V No. of MPP. trackers / strings per MPPT 3/(1/1/1) Max. input current per MPPT 20 A/20 A/20 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 4999 W -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Dimensions (W /H / D) 590 × 400 × 180 mm Net Weight 28 ± 2 kg
-
-
X1-VAST-6K
-
PV INPUT
Max. recommended PV array power 12 kWp MPPT voltage range 40 ~ 560 V No. of MPP. trackers / strings per MPPT 3/(1/1/1) Max. input current per MPPT 20 A/20 A/20 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 6000 W -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Dimensions (W /H / D) 590 × 400 × 180 mm Net Weight 28 ± 2 kg
-
-
X1-VAST-8K
-
PV INPUT
Max. recommended PV array power 16 kWp MPPT voltage range 40 ~ 560 V No. of MPP. trackers / strings per MPPT 4/(1/1/1/1) Max. input current per MPPT 20 A/20 A/20 A/20 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 8000 W -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Dimensions (W /H / D) 590 × 400 × 180 mm Net Weight 28 ± 2 kg
-
-
X1-VAST-10K
-
PV INPUT
Max. recommended PV array power 20 kWp MPPT voltage range 40 ~ 560 V No. of MPP. trackers / strings per MPPT 4/(1/1/1/1) Max. input current per MPPT 20 A/20 A/20 A/20 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 9999 W -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Dimensions (W /H / D) 590 × 400 × 180 mm Net Weight 28 ± 2 kg
-
