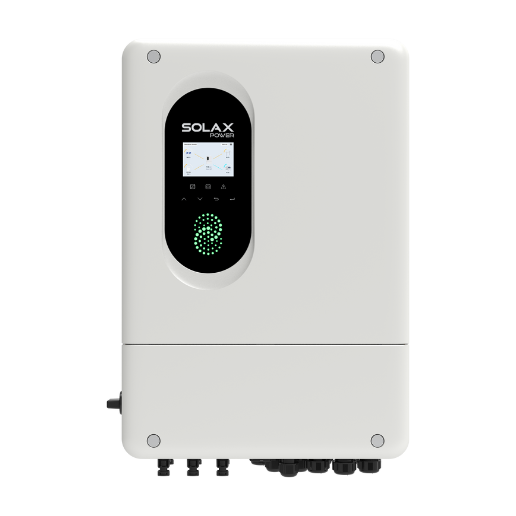

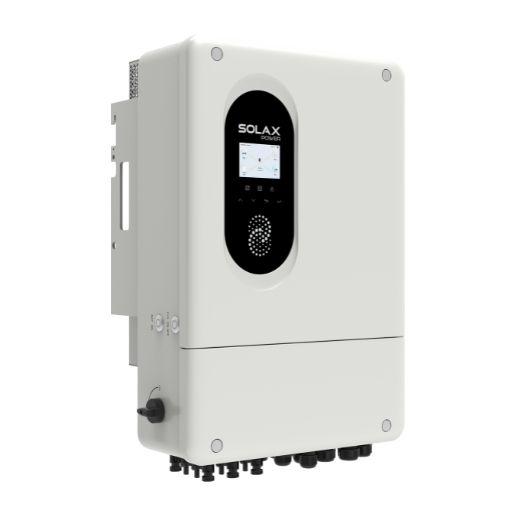

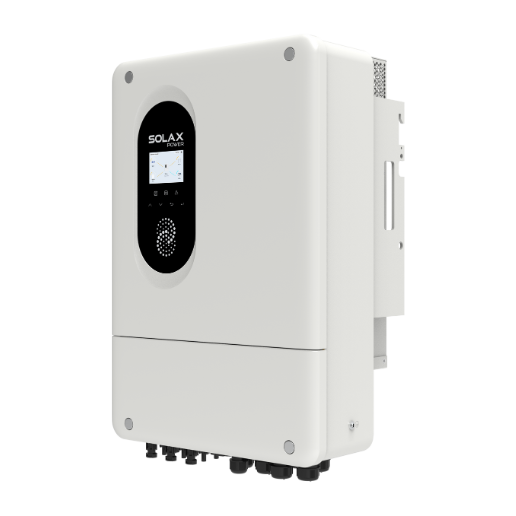

Hybrid Inverter

X1-Lite-LV

  • 8kW / 10kW / 12kW

The X1-Lite LV inverter features 200% PV oversizing capability, and seamless integration with multiple battery types. Supporting both on-grid and off-grid applications with up to 3 units in parallel, it is ideal for residential and microgrid setups seeking reliable solar energy solutions.

Product Advantage

Engineered for high-demand environments, the X1-Lite LV delivers up to 110% AC output and supports a powerful 200% peak EPS power for 10 seconds. Featuring a maximum current of 32A input per MPPT for high-power solar panels, it ensures faster energy storage.

Contact Us

Smart Management

  • Smart loads management

  • Single unit UPS-level switchover time < 8ms

  • Global MPP scan for optimal energy harvest*


Flexible Adaptability

  • Max. 3pcs parallel for on-grid and off-grid*

  • Microgrid and generator function for versatile operations

  • Max. 32A input per MPPT, optimized for high-power solar panels.


High Performance

  • 200% PV oversizing and up to 110% AC output

  • 200% peak EPS power for 10s*

  • Max. 250A charging / discharging current

  • Low start-up voltage for longer operation


Assured Reliability

  • Battery terminal temperature detection

  • IP65 protection degree

  • Type II SPD on AC&DC side

  • Optional AFCI protection*


Product Parameters

  • X1-Lite-8.0-LV
  • X1-Lite-10.0-LV
  • X1-Lite-12.0-LV
  • X1-Lite-8.0-LV
    • PV INPUT
      Max. recommended PV array power16kWp
      MPPT voltage range50 ~ 550 V
      No. of MPP. trackers / strings per MPPT2/(2/2)
      Max. input current per MPPT32 A/32 A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power8000 W


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<8 ms


    • GENERAL
      Dimensions (W /H / D)462 × 651 × 280 mm
      Net Weight38.5 kg


  • X1-Lite-10.0-LV
    • PV INPUT
      Max. recommended PV array power20kWp
      MPPT voltage range50 ~ 550 V
      No. of MPP. trackers / strings per MPPT2/(2/2)
      Max. input current per MPPT32 A/32 A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power10000 W


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<8 ms


    • GENERAL
      Dimensions (W /H / D)462 × 651 × 280 mm
      Net Weight38.5 kg


  • X1-Lite-12.0-LV
    • PV INPUT
      Max. recommended PV array power24kWp
      MPPT voltage range50 ~ 550 V
      No. of MPP. trackers / strings per MPPT3/(2/2/2)
      Max. input current per MPPT32 A/32 A/32A


    • AC INPUT & OUTPUT (ON-GRID)
      Rated output power12000 W


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)
      Peak EPS output power2 times of rated power, 10 s
      Switchover time<8 ms


    • GENERAL
      Dimensions (W /H / D)462 × 651 × 280 mm
      Net Weight38.5 kg
