Residential Batteries

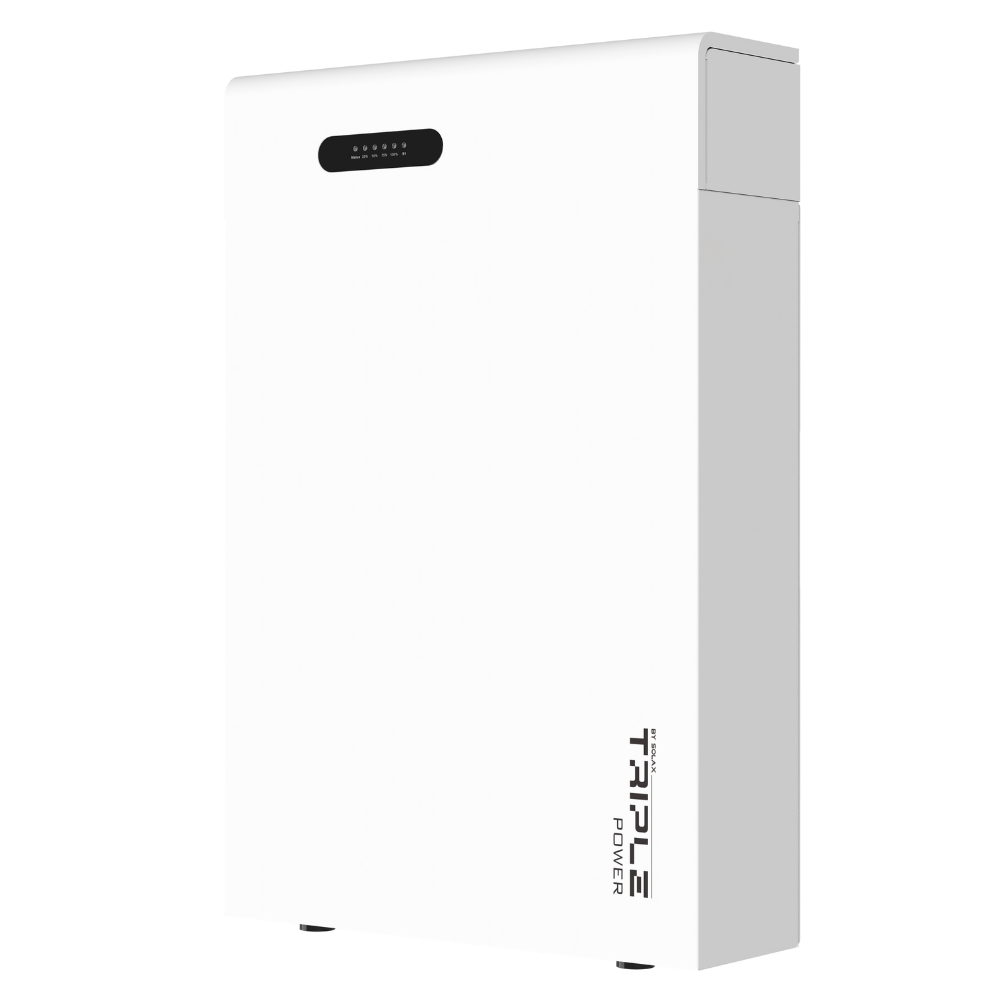

T-BAT-SYS-HV-5.8

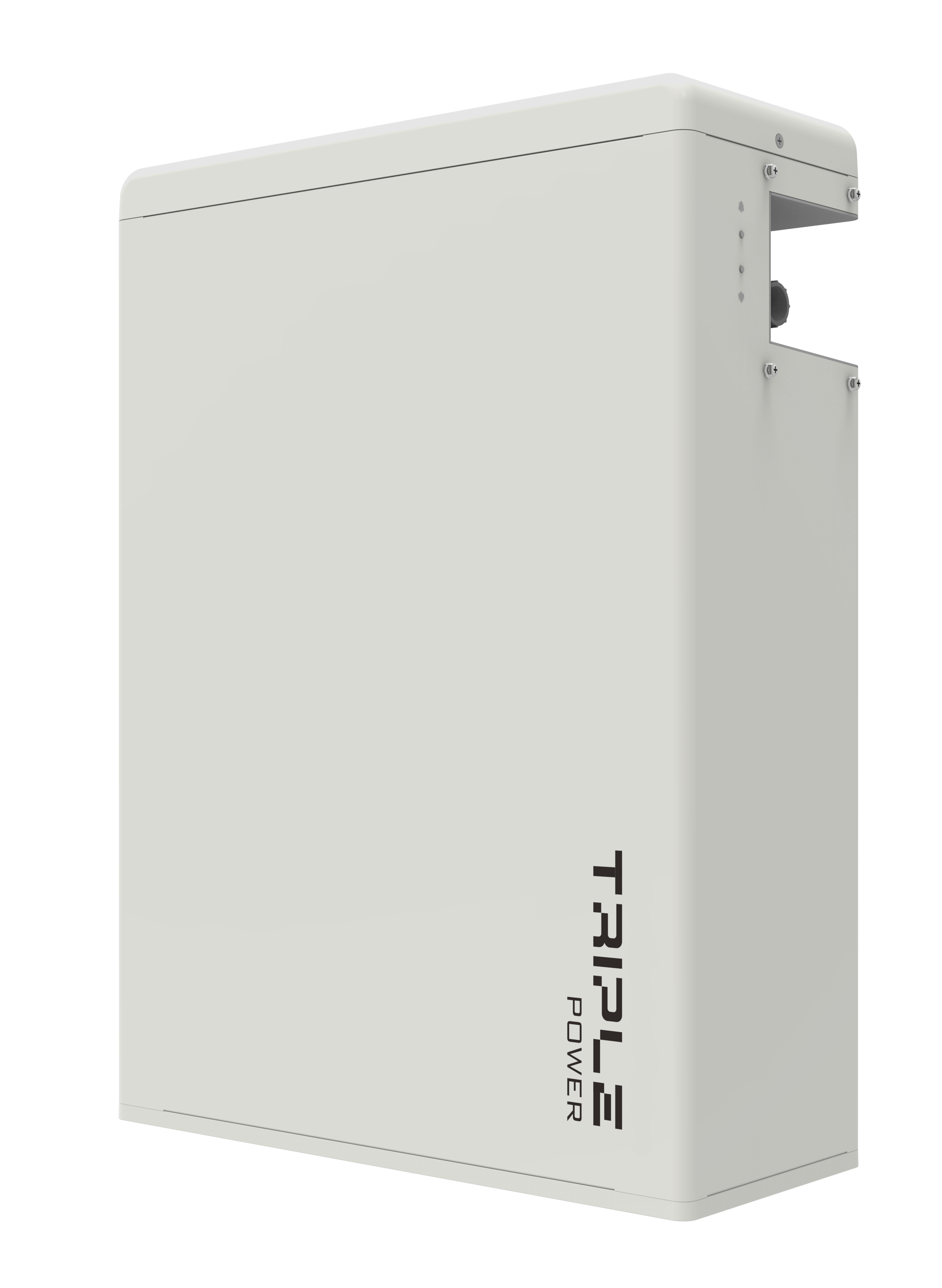

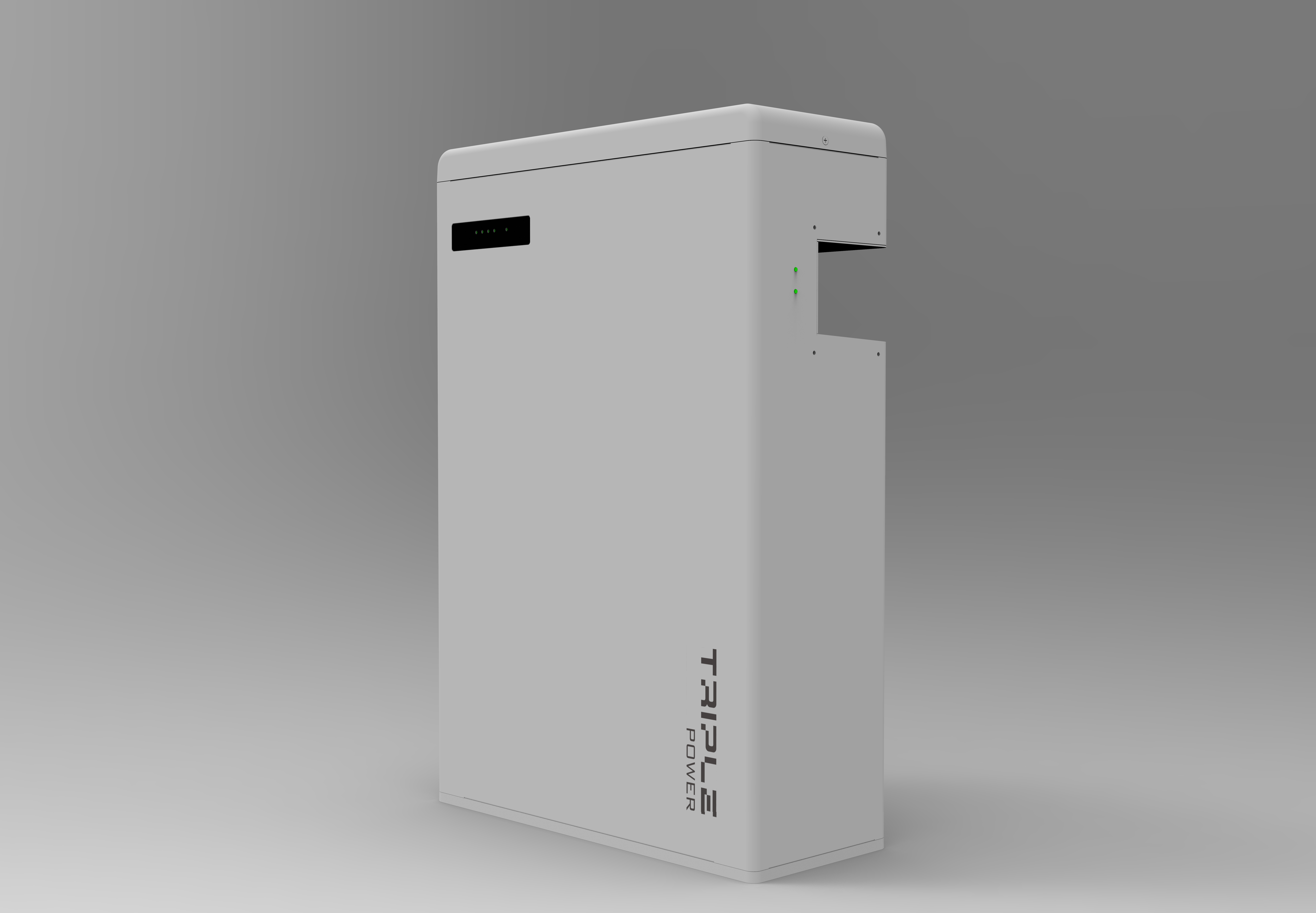

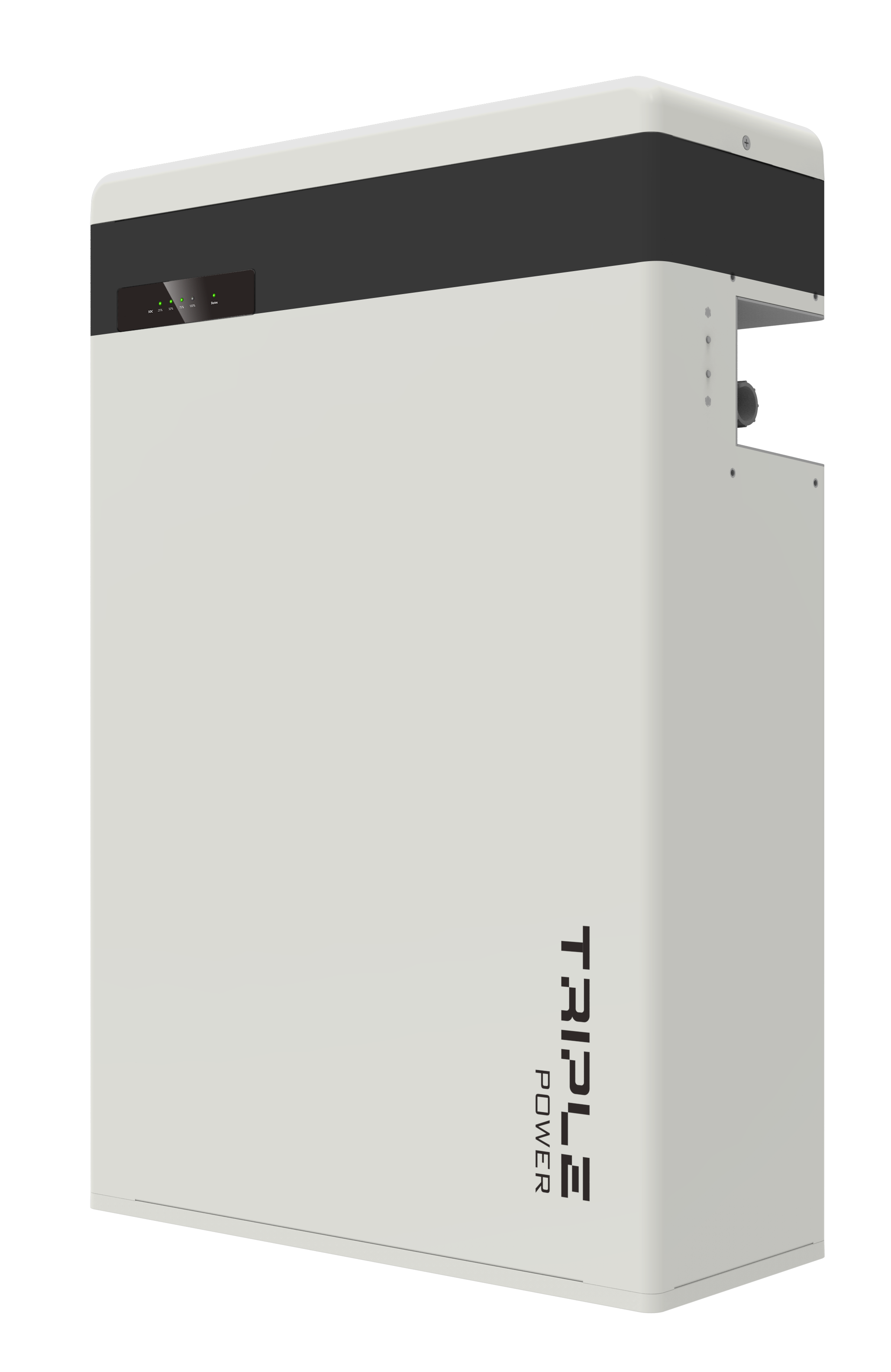

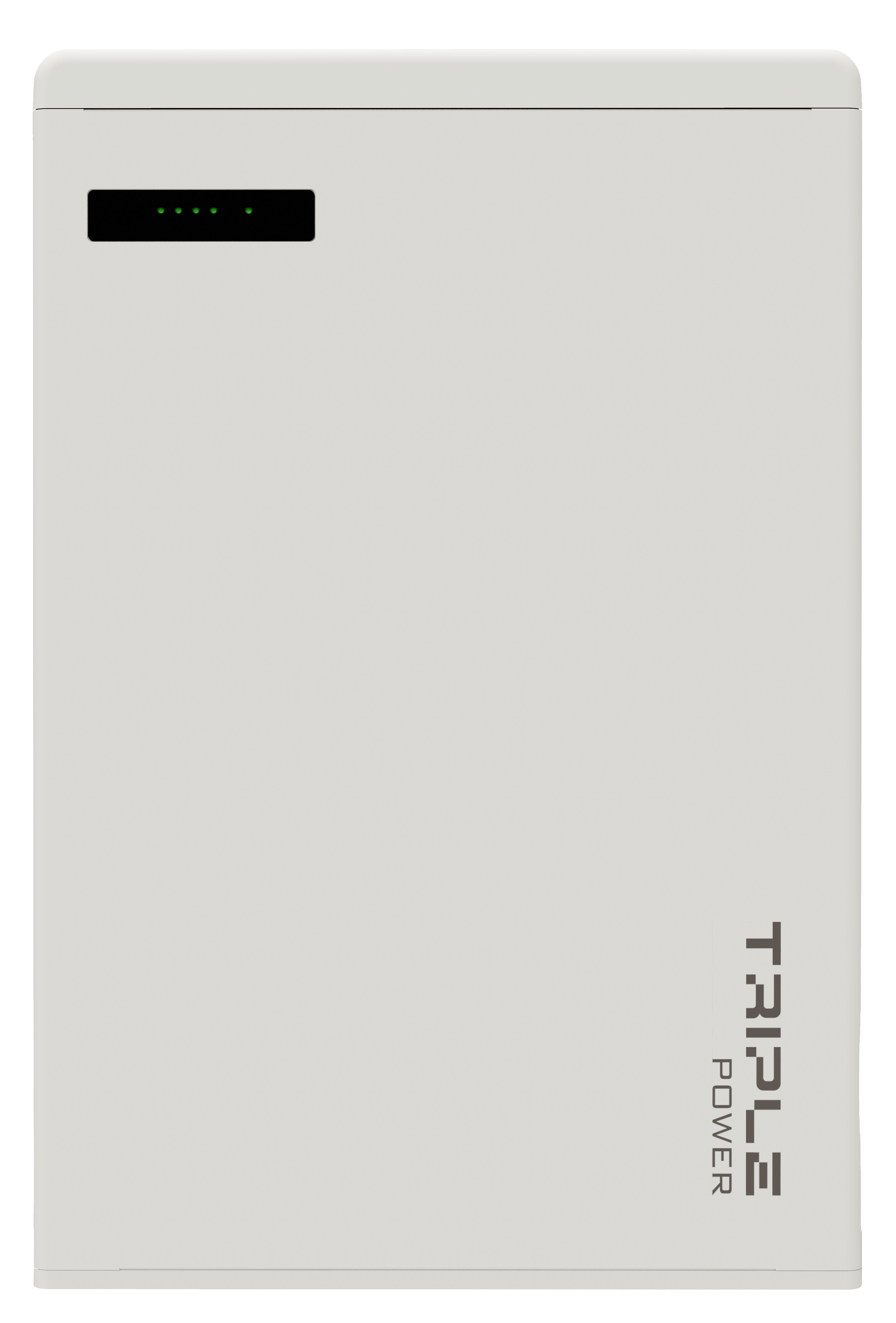

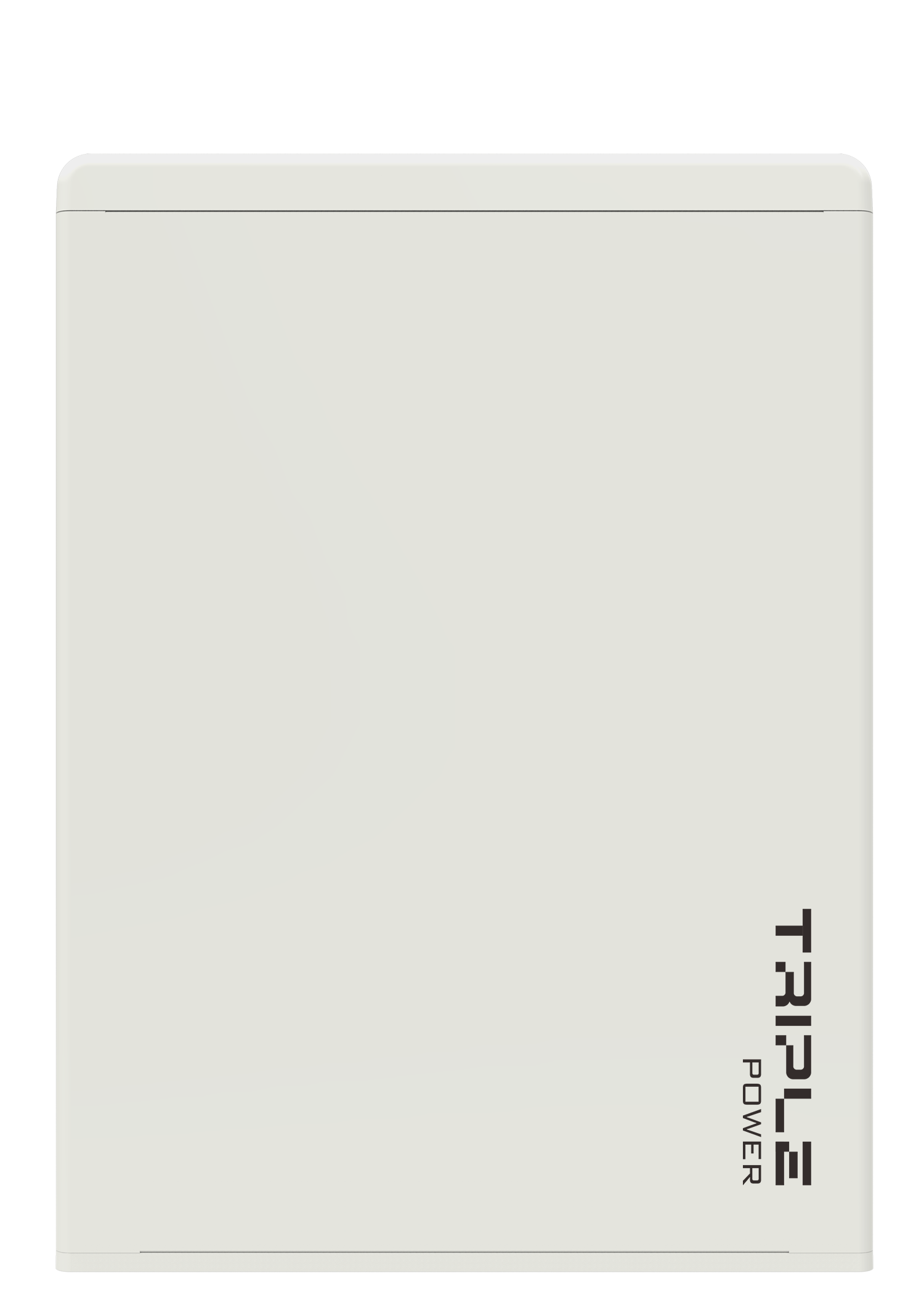

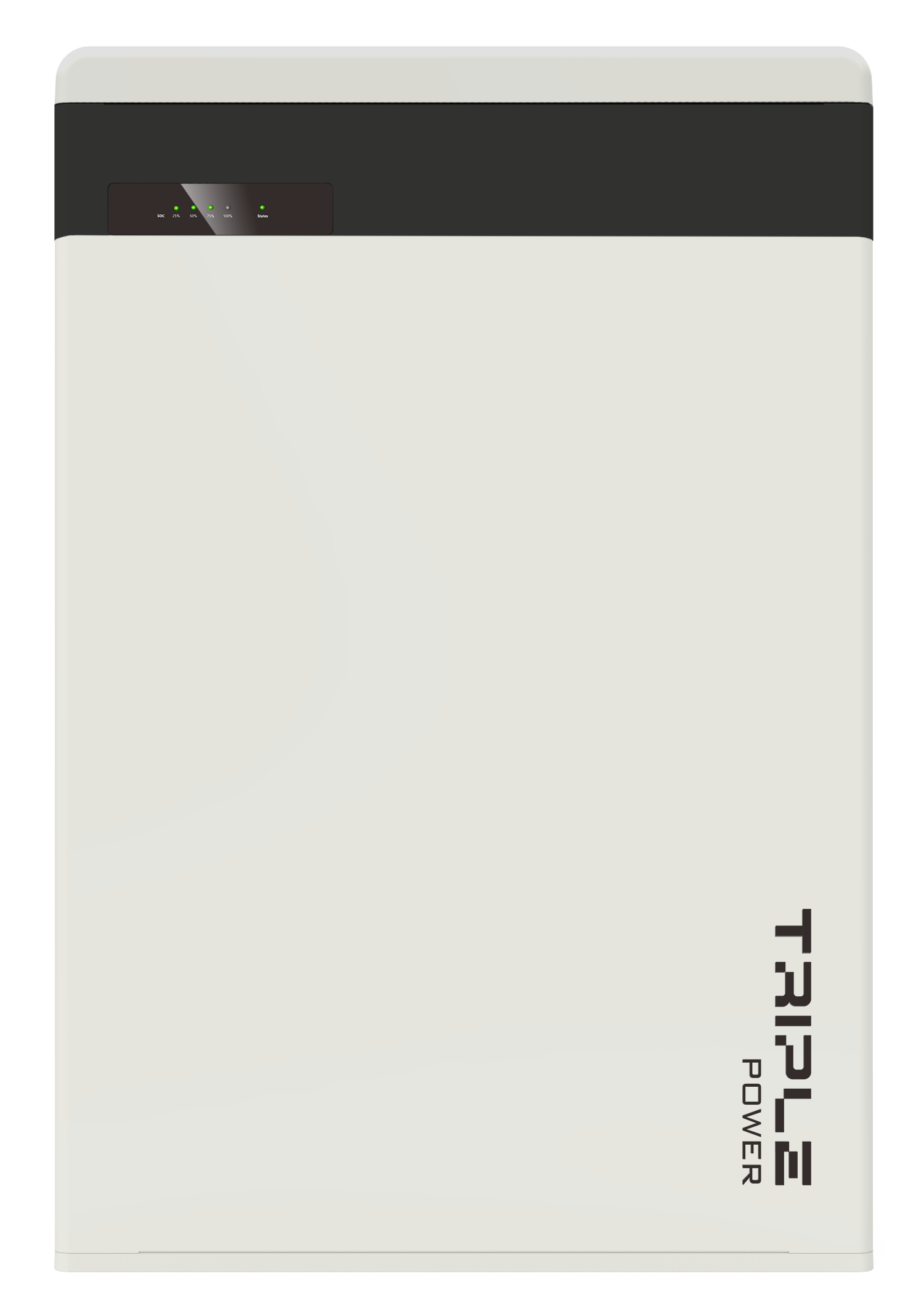

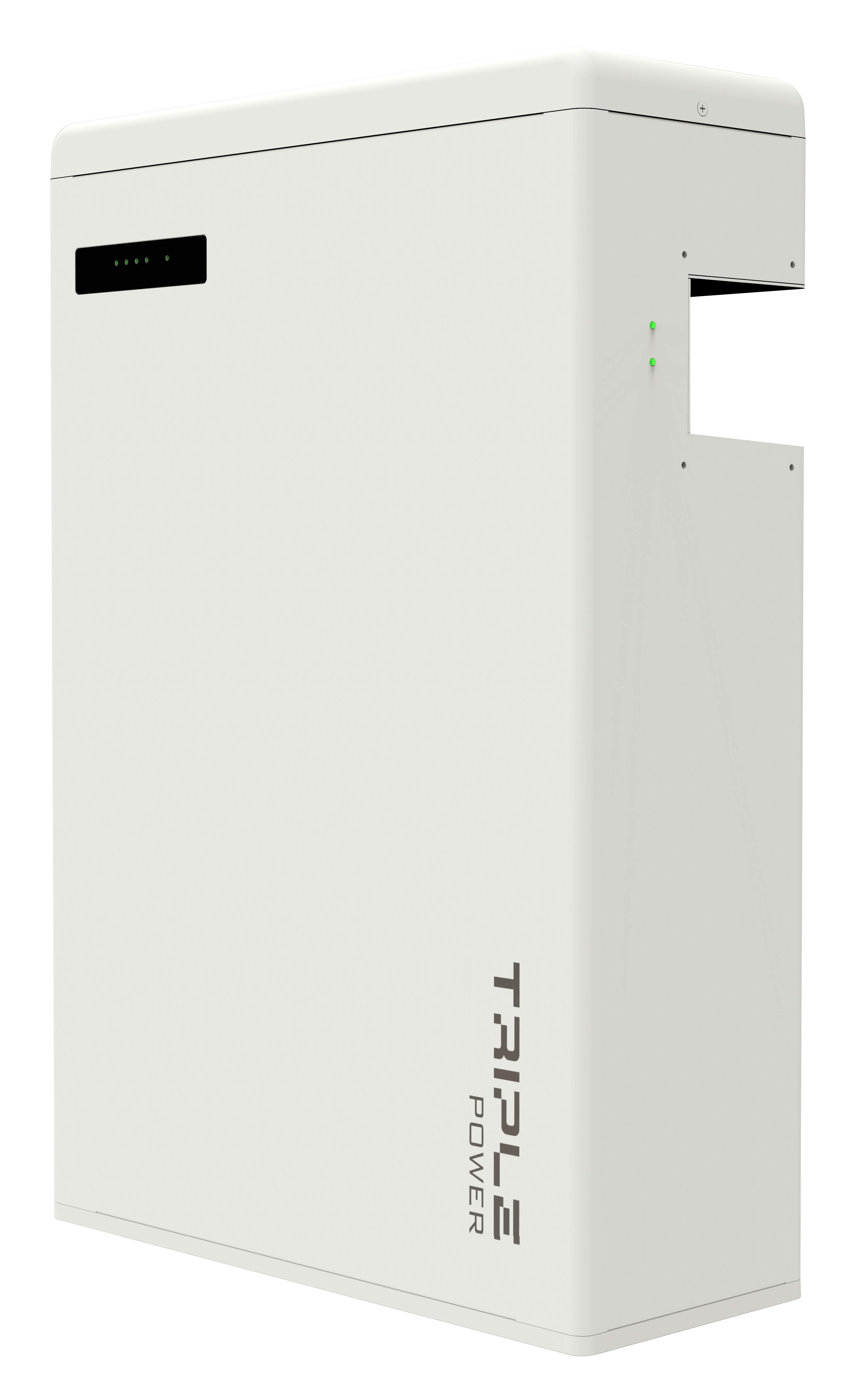

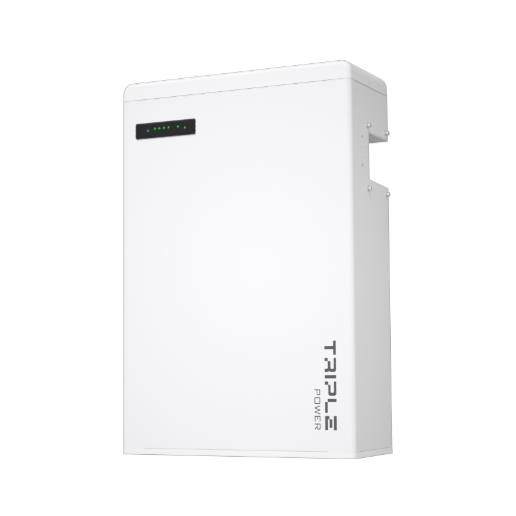

T-BAT H 5.8 (Master) T-BAT H 5.8 V2 (Master) HV11550 / HV11550 V2 (Slave)

The T-BAT-SYS-HV-5.8 offers a flexible installation process with the option to mount the system on the floor or wall, providing convenience for different spaces. Its compact design ensures quick installation and reduced self-consumption, making it an ideal energy storage solution.

Watch Video
Data Download

Product Advantage

The T-BAT-SYS-HV-5.8 delivers impressive depth of discharge (DOD) of up to 90% and a cycle life exceeding 6000 cycles. With an IP65 protection rating, it guarantees reliable operation in harsh conditions, while remaining eco-friendly with no toxic heavy metals or caustic materials.

High Performance

90% Depth of Discharge (DOD)
Cycle life > 6000 times

Assured Reliability

LiFePO4 battery cell & high-performance processors
IP65 protection degree
No toxic heavy metals or caustic materials

Smart Management

Remote fault diagnosis, upgrade and maintenance

Flexible Adaptability

Floor or wall mounting optional

Product Parameters

T-BAT H 5.8, T-BAT H 5.8 V2
T-BAT H 11.5, T-BAT H 11.5 V2
T-BAT H 17.3, T-BAT H 17.3 V2
T-BAT H 23, T-BAT H 23 V2

T-BAT H 5.8, T-BAT H 5.8 V2
- GENERAL

  Nominal voltage 115.2 V
  Total capacity 5.8 kWh
  Standard power 2.8 kW
  Dimensions (W x H x D)
  474 × 193 × 708 mm
  Weigh
  72.2 kg
- BATTERY MODULE

  Battery type Li-ion (LFP)
  Max Charge / Discharge current 35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection IP65
  Hazardous materials classification Class 9
T-BAT H 11.5, T-BAT H 11.5 V2
- GENERAL

  Nominal voltage 230.4 V
  Total capacity 11.5 kWh
  Standard power 5.7 kW
  Dimensions (W x H x D)
  474 × 193 × 708 mm +
  474 × 193 × 647 mm
  Weigh
  72.2 kg + 68.5 kg
- BATTERY MODULE

  Battery type Li-ion (LFP)
  Max Charge / Discharge current 35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection IP65
  Hazardous materials classification Class 9
T-BAT H 17.3, T-BAT H 17.3 V2
- GENERAL

  Nominal voltage 345.6 V
  Total capacity 17.3 kWh
  Standard power 8.6 kW
  Dimensions (W x H x D)
  474 × 193 × 708 mm +
  (474 × 193 × 647 mm) × 2
  Weigh
  72.2 kg + 68.5 kg × 2
- BATTERY MODULE

  Battery type Li-ion (LFP)
  Max Charge / Discharge current 35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection IP65
  Hazardous materials classification Class 9
T-BAT H 23, T-BAT H 23 V2
- GENERAL

  Nominal voltage 460.8 V
  Total capacity 23.0 kWh
  Standard power 11.5 kW
  Dimensions (W x H x D)
  474 × 193 × 708 mm +
  (474 × 193 × 647 mm) × 3
  Weigh
  72.2 kg + 68.5 kg × 3
- BATTERY MODULE

  Battery type Li-ion (LFP)
  Max Charge / Discharge current 35 A
- ENVIRONMENTAL REQUIREMENTS

  Ingress protection IP65
  Hazardous materials classification Class 9
