Monitoring Device

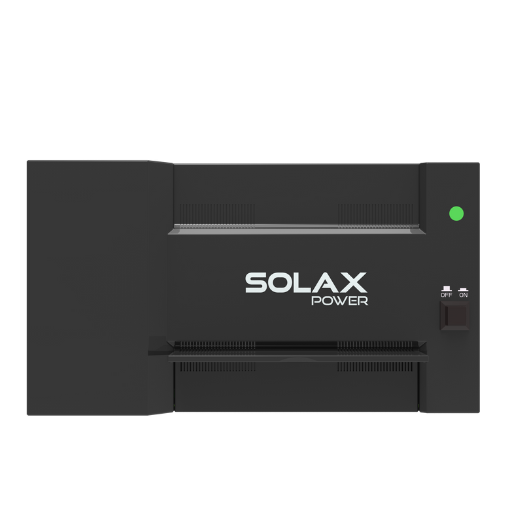

ECC-PLC
-
Energy Control Center
The SolaX Gateway ECC-PLC is a cutting-edge solution for capturing and conveying solar PV production and energy consumption data via RS485 to the Energy Control Center (ECC). It supports bidirectional communication, enabling seamless remote maintenance and system adjustments.
Product Advantage
With optional integrated production metering and consumption monitoring features, the ECC-PLC stands as a pivotal platform for intelligent energy management, optimizing energy efficiency and operational excellence.
Monitor & Control
Real-time load control and PV production monitoring
Web-based monitoring and control
Communication & Maintenance
Bidirectional communication for remote upgrades
Built-in industrial-grade PLC module
Remote operation and maintenance
Product Parameters
-
ECC-PLC-
MECHANICAL DATA
Dimensions(W × H × D) 218 × 122 × 50 mm Weight 0.5 kg Operating ambient temperature range 40 ~ +60°C (-40 ~ 140°F) Installation method Wall mounting / Rail mounting Cooling Natural Convection Environmental rating Indoor - IP20 -
COMPABILITY
Microinverter A1-Micro Series -
COMPLIANCE
Compliance CSA C22,2 N0.61010-1-12.UL61010-1. CSA-C22.2 No.61010-2-030:18,UL61010-2-030 FCC SDOC
-
Data Download
-
Datasheet
-
User Manual
-
Quick Installation Guide
-
