Supports fault recording and second-level fault data retrieval
Support multi-device parallel energy control and intelligent output control
Support second-level data storage and local storage up to 1 year
Built-in web interface
Support local monitoring and remote access
Cell-level data collection and monitoring

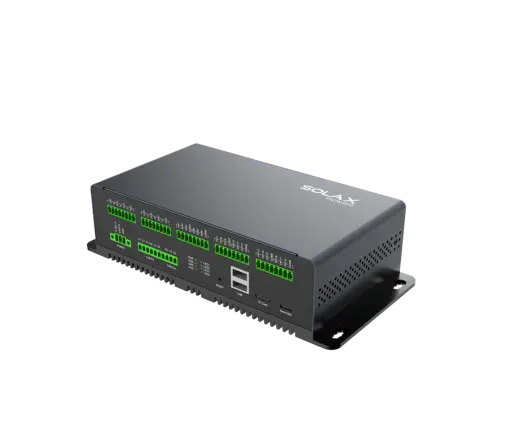

The SolaX EMS1000 is designed for use in industrial and commercial energy storage and solar power stations, supports fault recording and retrieval, parallel energy control, and intelligent output management.
With secondary data storage and local storage capabilities, it ensures reliable data retention for up to one year. SolaX EMS1000 also offers an efficient O&M experience with a built-in web interface, local monitoring, remote access, and cell-level data collection and monitoring, making it an ideal solution for seamless, smart, and effective energy system management.
Parameter | Details |
WAN | NET4, 10M/100M/1000M |
4G | CAT4 |
SIM Card Size | Nano - 4FF, 12.3mm×8.8mm; Class C, 1.8V |
Sample Rate | Per 10 seconds, 2G Data Package |
Parameter | Details |
LAN | NET1/NET2/NET3, 10M/100M/1000M |
RS485 | RS485×8 |
CAN | CAN-FD×2, CAN-2.0×1 |
Digital Inputs | DI1–DI12, dry contact; DI13–DI18, wet contact |
Digital Outputs | DO×8 |
Analog Input | AI×4 |
USB | USB2.0×2 |
Parameter | Details |
Operating Temperature [℃] | -40~60 |
Relative Air Humidity [%] | 5~95 (non-condensing) |
Elevation [m] | 3000 |
Protection Class | IP20 |
